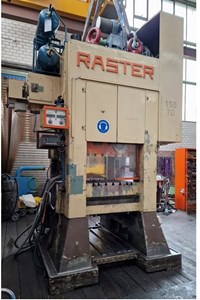

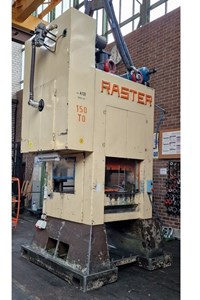

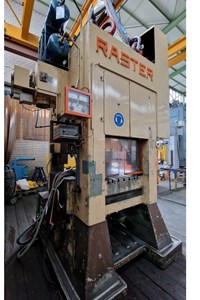

RASTER HR 150 NL/4S
Offer
| Stock number | M153023 |
|---|---|
| Machine type | High Speed Press - Mechanical |
| Make | RASTER |
| Type | HR 150 NL/4S |
| Year of manufacture | 1978 |
Details
| Press Force | 150 t |
|---|---|
| Stroke | fix 80 mm |
| Stroke Rate | 30 - 150 /min |
| Distance between Columns | 930 mm |
| Side Window | 650 mm |
| Daylight (max.Stroke up, Adjustment up) | 400 mm |
| Surface of Table | 880 x 1300 / 1500 x 600 mm |
| Hole in Table | 760 x 180 mm |
| Table Height above Floor | 1270 mm |
| Surface of Ram | 920 x 1000 / 1300 x 600 mm |
